| MODEL |
C-500MNC |

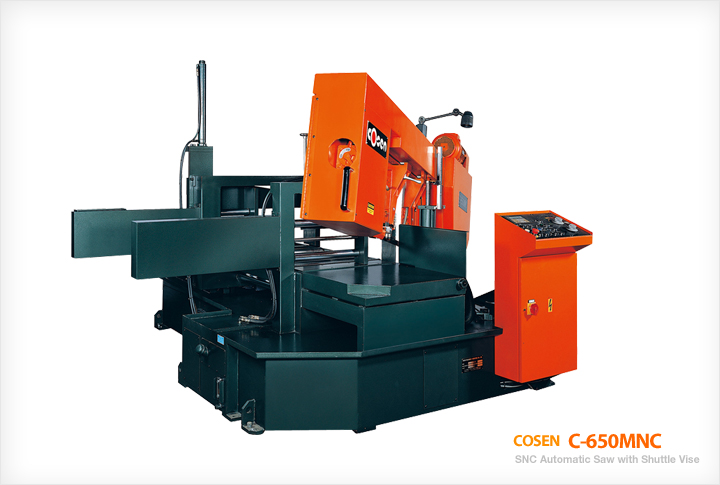

C-650MNC |
C-700DMNC |
C-800DMNC |
| Capaaity |
Round |
0˚ : 330 mm
+45˚ : 290 mm |
0˚ : 420 mm
+45˚ : 400 mm
+60˚ : 250mm |
0˚ : 450 mm
±45˚ : 450 mm
+60˚ : 300mm |
0˚ : 500 mm
±45˚ : 450 mm
60˚ : 400mm |
| Rectangular (HxW) |
0˚ : 280 x 500 mm
+45˚ : 265 x 265 mm |
0˚ : 380 x 650 mm
+45˚ : 400 x 400 mm
+60˚ : 400 x 250 mm
|
0˚ : 450 x 700 mm
±45˚ : 450 x 520 mm
+60˚ : 450 x 300 mm |
0˚ : 400 x 800 mm
±45˚ : 400 x 550 mm
60˚ : 400 x 400 mm |
Saw
Blade |
Speed |
20-100 m/min. |
20-100 m/min. |
20-100 m/min. |
20-100 m/min. |
| Size (LxWxT) |
4670L x 34W x 1.1Tmm |
5300L x 41W x 1.3Tmm |
5800L x 41W x 1.3Tmm |
6600L x 54W x 1.3Tmm |
| Tension |
Hydraulic (Automatic blade breakage detection) |
Motor
Output |
Saw blade |
5 HP (3.75 KW) |
7.5 HP (5.5 KW) |
7.5 HP (5.6 KW) |
7.5 HP (5.6 KW) |
| Hydraulic |
1 HP (0.75 KW) |
1 HP (0.75 KW) |
2 HP (1.5 KW) |
3 HP (2.25 KW) |
| Coolant |
1/8 HP (0.1 KW) |
1/4 HP (0.18 KW) |
1/4 HP (0.18 KW) |
1/2 HP (0.375 KW) |
| Floor Space |
2900 x 2600 x 2200 mm |
3600 x 2900 x 2500 mm |
4230 x 3300 x 2720 mm |
5200 x 3530 x 2725 mm | |
|
|
